Product Details
＋

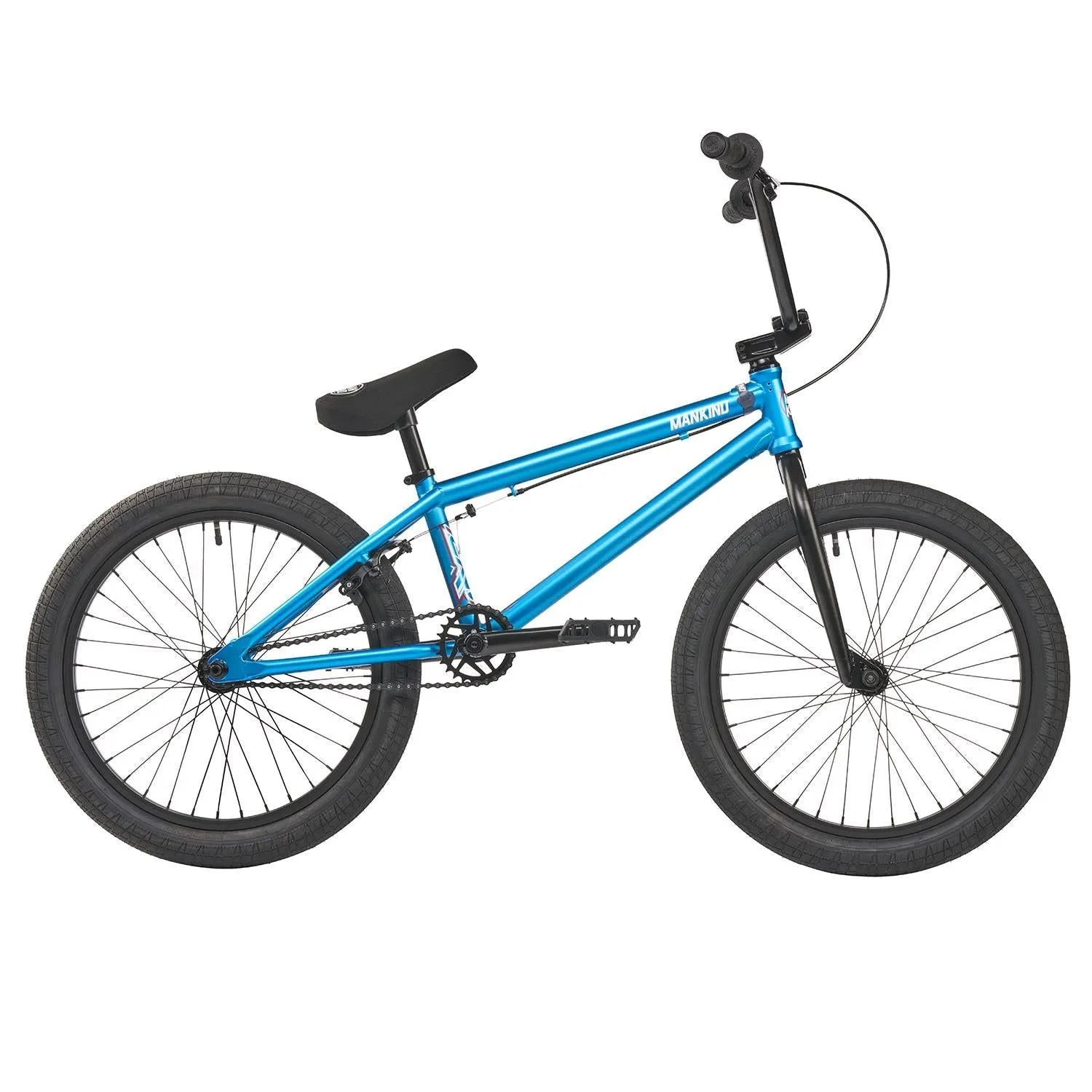

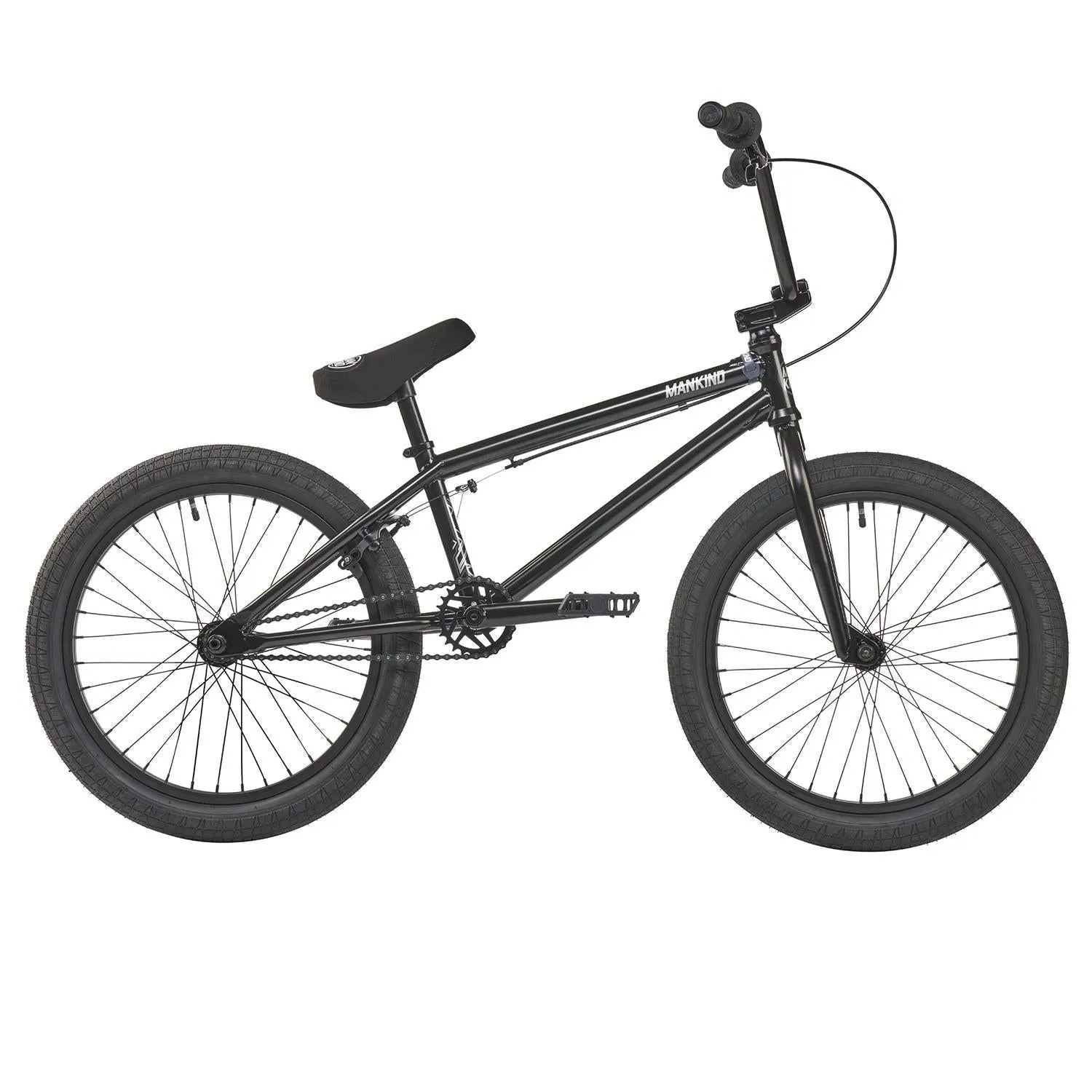

Mankind's NXS XS Bike takes their workhorse NXS model and drops the top tube down to 18.5 making it a much better fit for shorter riders.
It's built from 1020 Hi-ten steel throughout the frame. fork and bars giving the NXS reliable durability and strength to take any abuse you can throw at it. Single walled alloy rims are laced to a loose ball hub up front and a sealed Mankind Control hub at the rear wrapped up with Park/Street LP Tyres.
The NSX XS is finished with welded U-brake mounts and an alloy U-brake. it also has gyro tab holes drilled.
###section###
Product Specs
- FRAME MATERIAL: 100% Hi-Ten Steel
- WHEEL SIZE: 20
- TOP TUBE LENGTH: 18.5
- CHAIN STAY LENGTH: 13.25
- HEADTUBE ANGLE: 75°
- SEAT TUBE ANGLE: 71°
- FORKS: 100% Hi-Ten Steel with Tapered Fork Legs
- BARS:
- MATERIAL: Hi-Ten
- TYPE: 2-Piece
- RISE: 8.75 Rise
- WIDTH: 28.5 Width - STEM: Alloy Top Load
- HEADSET: Integrated
- BRAKE MOUNTS: Welded U-Brake
- BRAKES: U-Brake
- FRONT HUB: 10mm Loose Ball
- FRONT RIM: Single Wall
- REAR HUB: Sealed Cassette
- REAR RIM: Single Wall
- TYRES: 2.3
- SPROCKET: 25t
- CRANKS:
- MATERIAL: Chromoly
- TYPE: 3-Piece
- ARM LENGTH: 165mm - BB: 19mm Mid
- PEDALS: Plastic
- SEAT: Combo Seat/Post
- GEARING: 25/9
- WEIGHT: 23.59lbs (11kg)
###section###
Product Highlights
- A full size 20 wheel with smaller geometry to suit riders typically fitting a 18 wheeled bike (3'6 - 4'6 / 105cm - 135cm)
- A great all rounder suitable for any type of riding
- Strong Hi-ten steel construction
- Great spec for a BMX in this price bracket
- U-brake system on welded mounts
